SPECIFICATIONS



Connectivity: IP/Network Wired

High Definition: 4.0 Megapixels

High-concerned Chemical: None

Installation: Ceiling

Lens (mm): 2.8mm

Megapixels: 4MP

Power Supply(V): 12V

Sensor Brand: Sony

Special Features: Waterproof / Weatherproof

Supported Operating Systems: Windows 98,Windows vista,Window, XP,Windows 7,Windows 10,Windows 8,Windows 2008

Video Compression Format: H.265

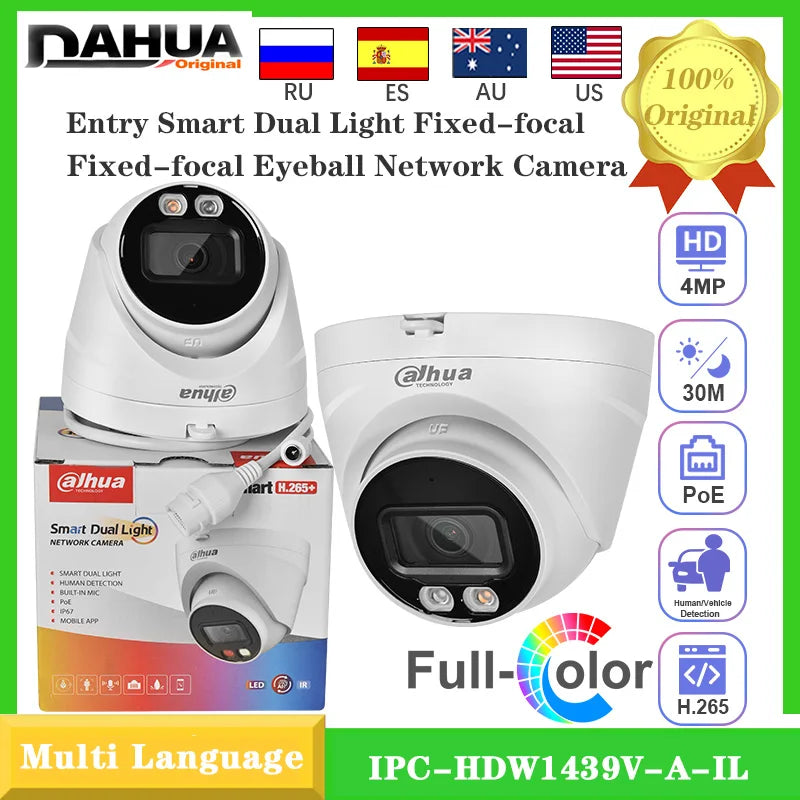

Original Dahua IPC-HDW1439V-A-IL 4MP Entry Smart Dual Light Dual Light Fixed-focal Built in Mic POE IP67 Eyeball Network Camera

IPC-HDW1439V-IL-K

4MP Entry Smart Dual Light Fixed-focal Eyeball Network Camera

> 4-MP 1/2.9" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 4 MP (2560 × 1440)@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.

> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Abnormality detection: Motion detection, video tampering, audio detection, network disconnection,

> Supports human detection.





Camera :

Image Sensor : 1/2.9" CMOS

Max. Resolution : 2560 (H) × 1440 (V)

ROM : 128 MB

RAM : 128 MB

Scanning System : Progressive

Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s

Min. Illumination : 0.006 lux@F1.6 (Color,30 IRE)

 0.0006 lux@F1.6 (B/W,30 IRE)

 0 lux (Illuminator on)

S/N Ratio : >56 dB

Illumination Distance : Up to 30 m (98.43 ft) (IR LED)

 Up to 30 m (98.43 ft) (Warm light)

Illuminator Number : 1 (IR LED); 1 (Warm light)

Angle Adjustment : Pan: 0°–360°

 Tilt: 0°–78°

 Rotation: 0°–360°



Lens :

Lens Type : Fixed-focal

Lens Mount : M12

Focal Length : 2.8 mm;3.6 mm

Max. Aperture : F1.6

Field of View : 2.8 mm: H: 94°; V: 52°; D: 111°

 3.6 mm: H: 78°; V: 41°; D: 94°

Iris Control : Fixed

Close Focus Distance : 2.8 mm: 1.1 m (3.61 ft)

 3.6 mm: 1.7 m (5.58 ft)



Intelligence :

Human Detection : Support the classification and accurate detection of human

Smart Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos



Video :

Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec : Smart H.265+; Smart H.264+

Video Frame Rate : Main stream: 2560 × 1440@(1–25/30 fps)

 Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

 *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability : 2 streams

Resolution : 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control : CBR/VBR

Video Bit Rate : H.264: 32 kbps–4096 kbps

 H.265: 12 kbps–4096 kbps

Day/Night : Auto(ICR)/Color/B/W

BLC : Yes

HLC : Yes

WDR : 120 dB

White Balance : Auto; natural; street lamp; outdoor; manual

Noise Reduction : 3D NR

Motion Detection : OFF/ON (4 areas, rectangular)

Region of Interest  : Yes (4 areas)

Smart Illumination : Yes

Image Rotation : 0°/180°

Mirror : Yes

Privacy Masking : 4 areas



Audio :

Built-in MIC : None

Audio Compression : None



Alarm :

Alarm Event : Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception



Network :

Network Port : RJ-45 (10/100 Base-T)

SDK and API : Yes

Network Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP

Power Supply : 12 VDC/PoE (802.3af)

Power Consumption : Basic: 2 W (12 VDC); 2.9 W (PoE)

 Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.6 W (12 VDC); 5.7 W (PoE)



Environment :

Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity : ≤95%

Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity : ≤95%

Protection : IP67



Structure :

Casing Material : Inner core: Metal+plastic

 Cover: Plastic

Product Dimensions : 100.9 mm × Φ109.9 mm (3.97" × Φ4.33")

Net Weight : 0.33 kg (0.73 lb)

Gross Weight : 0.45 kg (0.99 lb)
